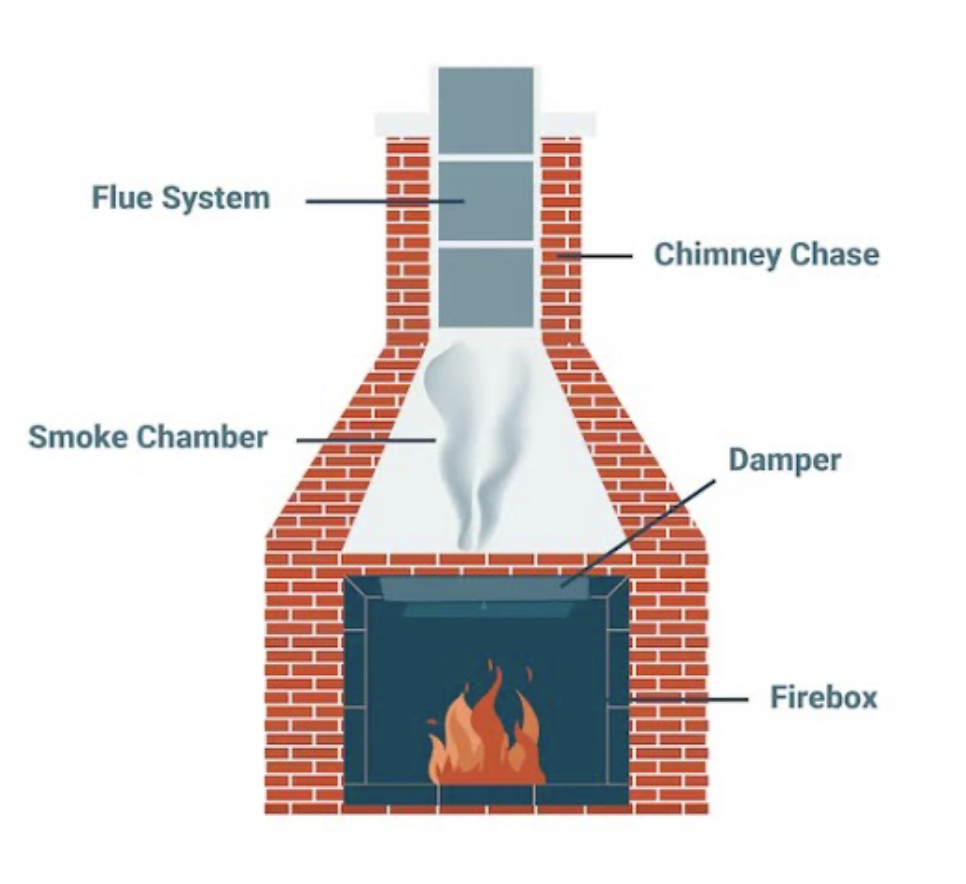

The vertical passage through which hot flue gases and smoke pass. This should not be confused with the damper.

Since 1905, all chimneys must have a liner. This is the sacrificial part that contains and conducts the flue gases to the outer atmosphere. For a very long time, liners have been terra cotta tile. Modern times have introduced alternate materials like stainless steel.

This is a term that can be confusing. In masonry, the cement or concrete on top of a wall is called a cap. On a Chimney that is called a wash, splay, or crown, depending on thickness and shape. Swift, collectively, calls them all the crown.

A raincap is the metal hat that covers the flue. All flues serving gas appliances must have a rain cap. Interestingly flues serving other fuel types are not required to have a rain cap. Keeping rain out makes good sense. Sometimes a flue needs more breathing space. In those cases a larger top mount or outside mount cap may be needed.

While not properly part of the chimney, there is a necessary clearance to combustible roof members. The rafters and cats between them need to be 2 inches away from the chimney.

Made of brick, block, or other non-combustible material, the walls of the chimney are part of the insulating barrier between the hot smoke on the combustible parts of the house. They need to have a nominal thickness and be spaced not only away from the combustible house materials, but also to have air space between them and the liner. Sometimes that air space gets filled with rubble. That is not a good thing in many ways. Talk with one of our professionals about how this is a hidden danger.

Like roof rafters, ceiling joists should be spaced 2 inches away from the chimney. That space should be fire-stopped with sheet metal. It might have been left open. In too many cases, the joists but right up to the chimney. As one of our professionals, about achieving zero clearance.

Did you know that drywall is considered combustible? While the gypsum is not, the paper backing is. It can act like a fuse and carry fire to other combustibles. Oftentimes, that drywall is attached to wooden studs or sleepers.

Plaster itself is non-combustible. Older homes may have a wooden lathe under the plaster. Plaster often had combustible material mixed into it. It is best to have these materials and their support structures examined for clearance to the chimney.

This is the chamber above the firebox that tapers to meet the flue. It also serves to support the flue. A smoke chamber is best built using firebrick, but it might also be built using redbrick. Each has a different clearance to combustibles. It is usually very difficult to determine if this clearance was observed properly. Ask one of our professionals how to improve the function of the smoke chamber and achieve zero-clearance at the same time.

The damper is used to prevent drafting when the fireplace is not in use. Traditional throat dampers do have positive seals. They leak on the order of hundreds of dollars each year in heating AND cooling costs. Ask one of our professionals about installing a top-sealing damper with a silicone rubber seal.

The mantling is the decorative trim around the fireplace. Since combustibles need to be 2 inches away from the fireplace sides, some sort of trim is needed to cover the gap. Ironically, this trim can be combustible. It must be spaced a certain distance from the fireplace opening. Our professionals will check this for you.

The mantle shelf is a traditional part of the system. Its function is both decorative and practical. When composed of combustible material, it needs to be a certain distance above the fireplace opening. Our professionals will check this clearance for you.

Notice how the rear wall of the firebox leans forward? That is to reflect some heat back to the fire and also into the room. That lean forward creates extra space between the firebox wall and the outer wall of the fireplace. That space needs to be sealed against soot falling down. That seal is the smoke shelf. Contrary to popular mythos, it serves no function.

This is where you build the fire. It is best built of firebrick, but in past times was often built of redbrick or stone. Each material has a different clearance to combustibles. We will be happy to check this by making accurate measurements. This is especially critical for fireplaces located central to the home.

This is the floor of the firebox. It is usually composed of firebrick laid on a concrete foundation. That concrete needed to be poured onto a form. All too often, the form is wooden and has been left in place. Such form wood can ignite and burn like a fuse to nearby combustible materials.

Like the hearth, the extension is a non-combustible material extending in front of the fireplace. It, too, is usually founded on concrete. Like the hearth, wooden forms are all too often used and left in place.

Like rafters and ceiling joists, floor joists need to have a certain clearance from the fireplace and chimney. The hearth extension usually defines that clearance. With recent changes to the code, the clearance that was once acceptable has been identified as a potential hazard. Our pros will check this clearance for you and help find a solution if it is needed.

Since the foundation of the fireplace system need not be solid (only the footing must be), there is usually a hollow space under the hearth. The ash dump is an uninsulated space that allows heat to radiate directly to combustible forming that might have been left under the hearth.

In colonial times, this was a convenient place to store ashes for making soap. We recommend that you also behave frugally, but instead of making soap, give the ashes to your lawn, compost heap, or gardens. Unless, of course, you do want to make soap.

This is the opening through which you would retrieve those ashes. It needs to have a non-combustible door or cover. The opening has clearances to combustibles. Ask one of our guys how far away from it you should keep items you might store in that area.

This is the walls that support the structure and raise it up to a useful level. In modern times, it might be a monolithic pour of concrete or cinder block. In older periods, this was often done with brick and may even have used a brick arch.

The footing is the base that supports the entire structure. It has a footprint that is wider than the whole structure, including the foundation. In older periods, this might have been wood piling or sleepers. Sometimes, large blocks of stone were used. As time moved forward, concrete became the material of choice.
